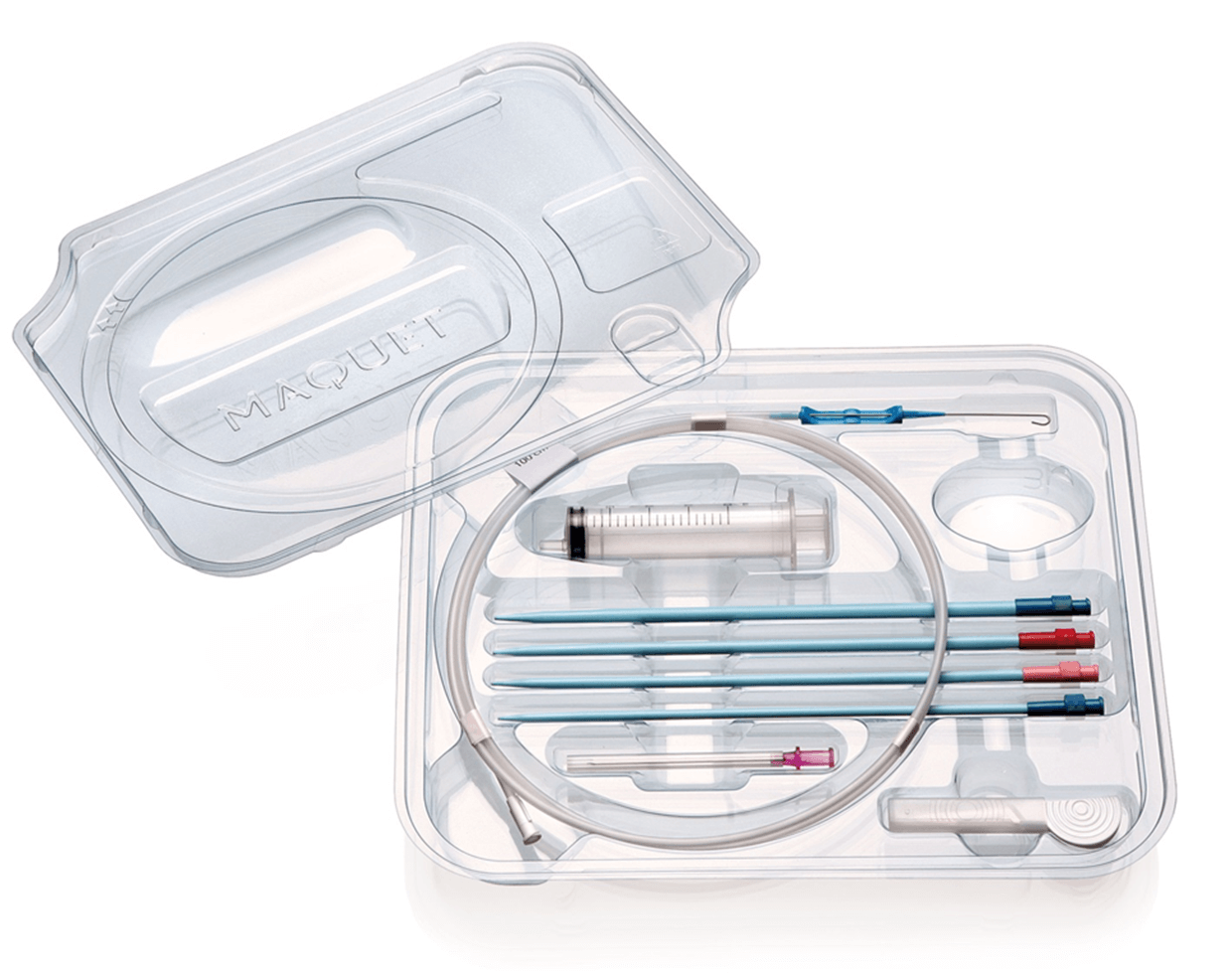

Percutaneous Insertion Kit
The insertion kit from Maquet Cardiopulmonary comprises various components which permit access to the vessel. There is one insertion kit available for the arterial cannula (PIK 100) and one for the venous cannula (PIK 150).
Additional vessel dilators in other sizes are available separately.

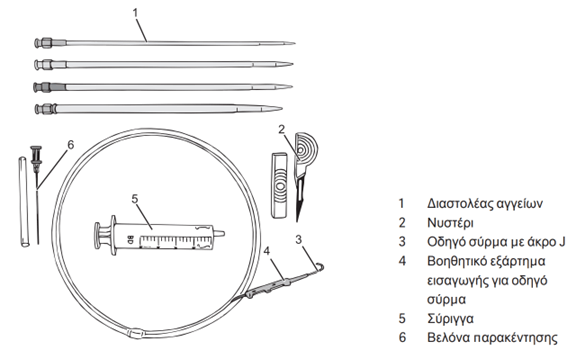

Description
- Vessel dilator
- Scalpel
- Guide wire with J-tip
- Insertion aid for guide wire
- Syringe
- Puncture needle
The device must be used only by trained physicians. The physician must be experienced in vessel cannulation procedures and the proper handling of complications.
The device is intended to be used in a clinical environment under aseptic conditions.
The device can be used for all patients with appropriate vessel sizes irrespective of age, body weight and gender.
Technical Data
Insertion kit components
Mini scalpel, size Mini 11P, including mini handle Puncture needle 18 Ga (1.27 mm), 9.45 cm long, maximum insertion length 6.85 cm
Syringe 10 ml (10 cc)
Vessel dilator 1, double taper 10/12 Fr (3.3 / 4.0 mm), dark blue connection, 23.3 cm long, maximum insertion length 20.3 cm
Vessel dilator 2, double taper 12/14 Fr (4.0 / 4.7 mm), pink connection, 23.3 cm long, maximum insertion length 20.3 cm
Vessel dilator 3, double taper 14/16 Fr (4.7 / 5.3 mm), red connection, 23.3 cm long, maximum insertion length 20.3 cm
Vessel dilator 4, double taper 16/18 Fr (5.3 / 6.0 mm), dark blue connection, 23.3 cm long, maximum insertion length 20.3 cm
Guide wire:
PIK 100: Arterial 0.038″ (0.097 cm) x 100 cm, J-tip
PIK 150: Venous 0.038″ (0.097 cm) x 150 cm, J-tip
